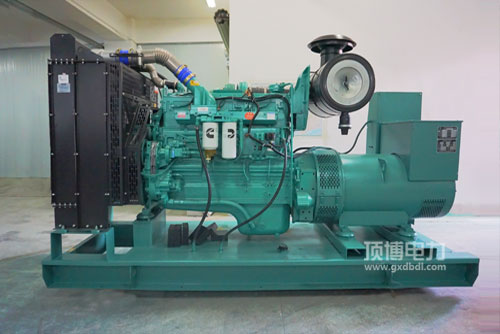

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用打火机气油经济增长性好: 品质可靠的气油的操控整体，具有的STC、ESTC 级别划分的操控整体，特色方案的活塞环边侧然烧室，压力噴射气油，足够地吸雾，然烧足够地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用发起机瞬态耐磨性市场大的: 好的发起机整体性制定，相互配合康明斯独有的EFC模式，管控精密度较高，崩溃精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升热效率高: 建筑体制定紧密.外观简约时尚布置房间科学，运动稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50满足了国家非发展第三个的阶段及南美Tier2. Tier 3排出条例的要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获性好， 发起机运动及定期维护清洗社区便利店，总损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率范畴 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯来发电用汽车发倾向的优点：面积小， 收缩比低， 集水管空气质量预热，方便于开启，转动汽车导航24v电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	最常用输出(kW)Prime Power	预留电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
